SeraSolor

TOPCON

TOPCON P-Type M10 Halfcut-cell

High Efficiency: 21.8%
25-Year Warranty
Eco-Friendly

TOPCON Technology

High-efficiency P-Type TOPCON solar panels with M10 half-cut cell technology. Available in three configurations for optimal performance in various installation scenarios.

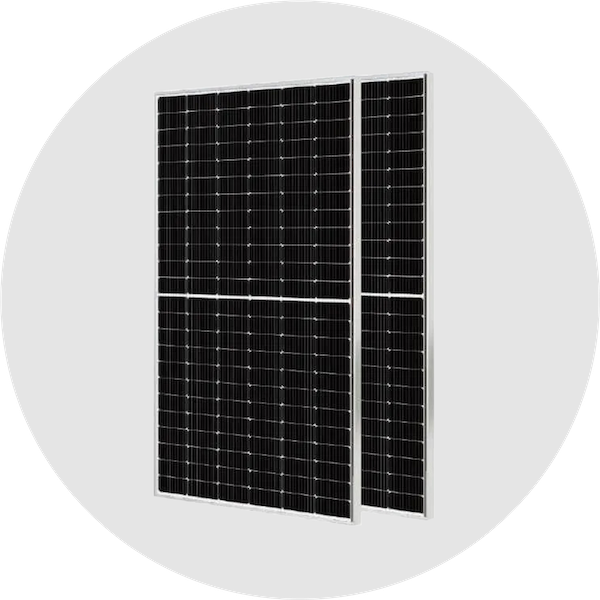

NS144B Series

560 – 590/1500 V

MBB TOPCON M10 Halfcut-cell

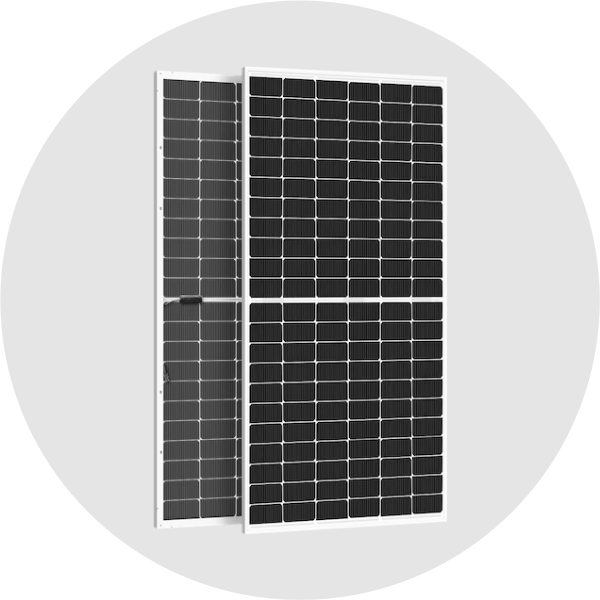

NS600B Series

620 – 635/1500 V

MBB TOPCON N-Type G12R Halfcut-cell

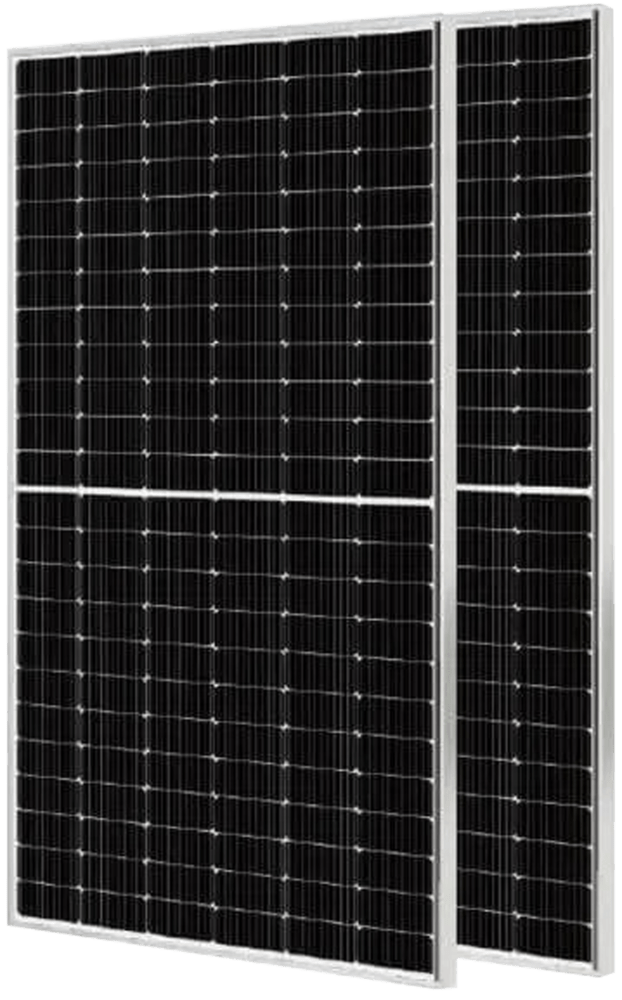

NS144B Series

MBB TOPCON M10 Halfcut-cell

560 – 590/1500 V Configuration

Efficiency: 21.8% 25-Year Warranty Bifacial Gain: 15-25%
Mechanical Data

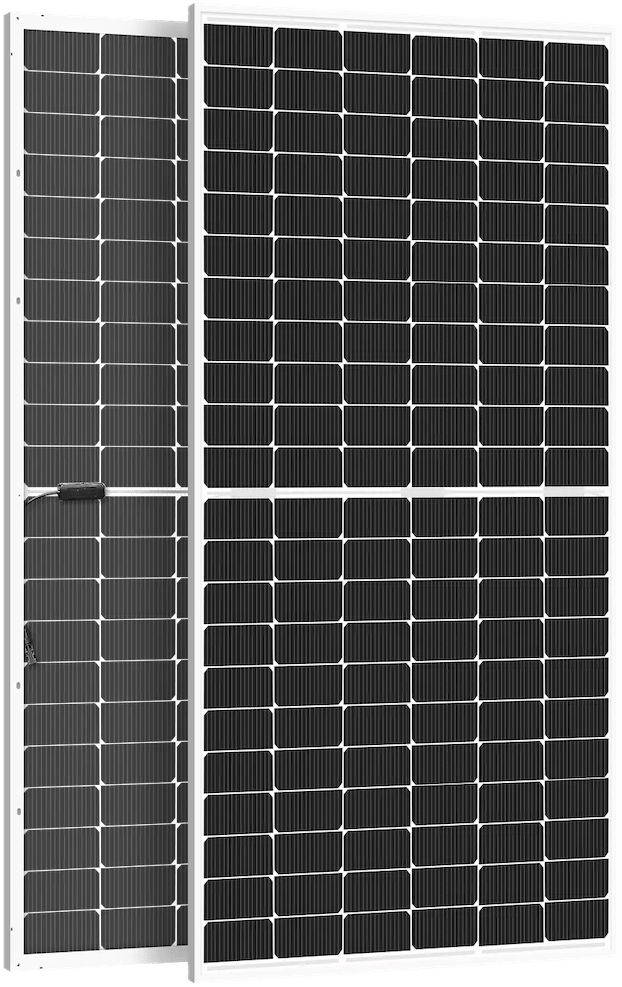

NS600B Series

MBB TOPCON N-Type G12R Halfcut-cell

620 – 635/1500 V Configuration

Efficiency: 21.5% 30-Year Warranty Double Glass

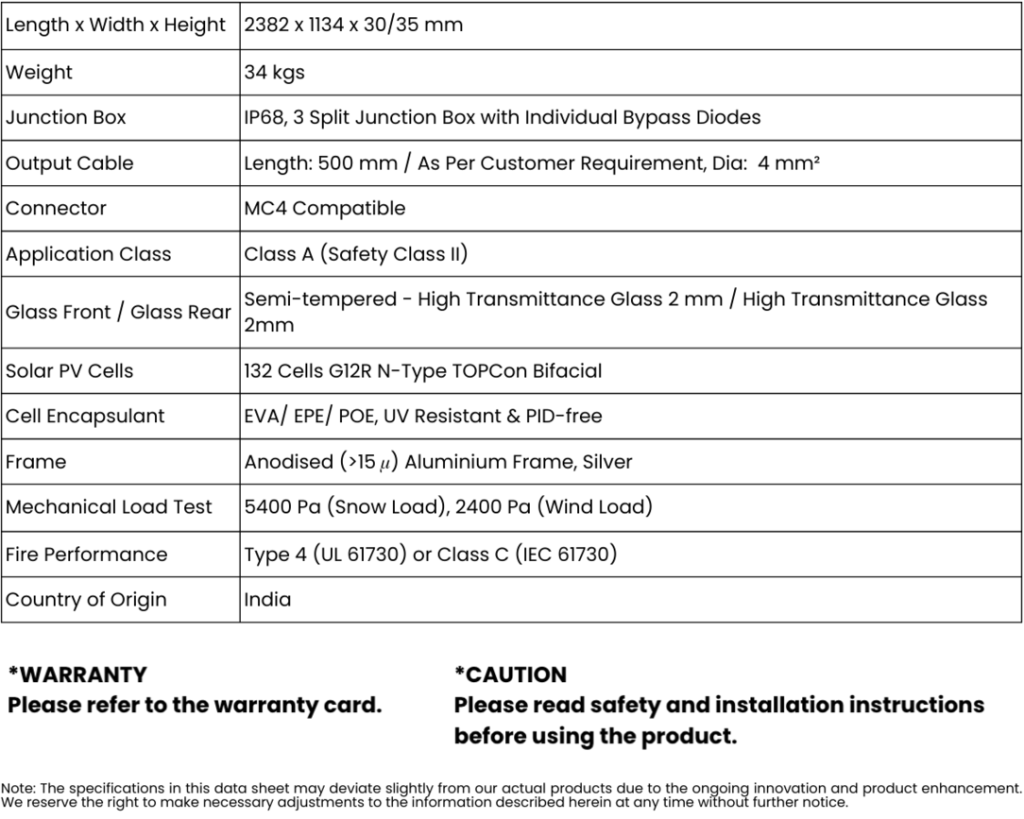

Mechanical Data
l

TOPCON Technical Specifications

Mechanical Specifications
Dimensions 2384 × 1134 × 30/35 mm
Weight 34 kg
Junction Box IP68 rated, 3 diodes
Connector MC4-EVO2 compatible
Application Class Class A (utility scale)
Solar Cells 132 cells G12R N-Type TOPCon
Frame Material Anodized aluminum alloy
Operating Temperature -40°C to +85°C

Performance Advantages

  • Lower LID & LeTID degradation (<1%)
  • Higher bifacial gain (up to 30%)
  • Better low-light performance
  • Higher temperature coefficient
  • Enhanced shading tolerance

Reliability & Durability

  • 5400 Pa snow load rating
  • 2400 Pa wind load rating
  • Glass-glass construction
  • PID resistance certified
  • Ammonia & salt mist resistant

Environmental Benefits

  • Lower carbon footprint
  • Lead-free manufacturing
  • Recyclable materials
  • Reduced water consumption
  • 30+ year lifespan
